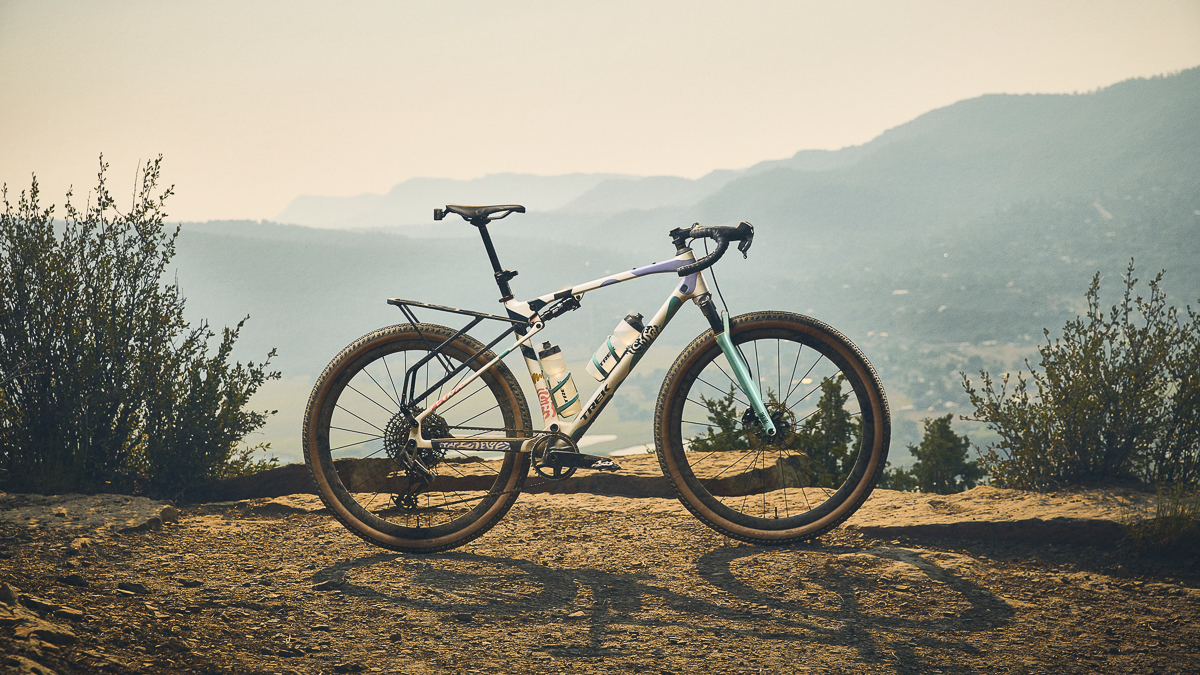

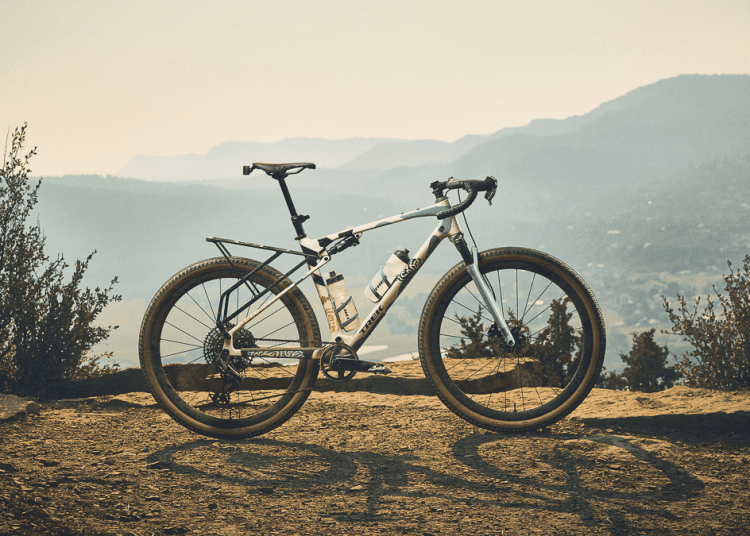

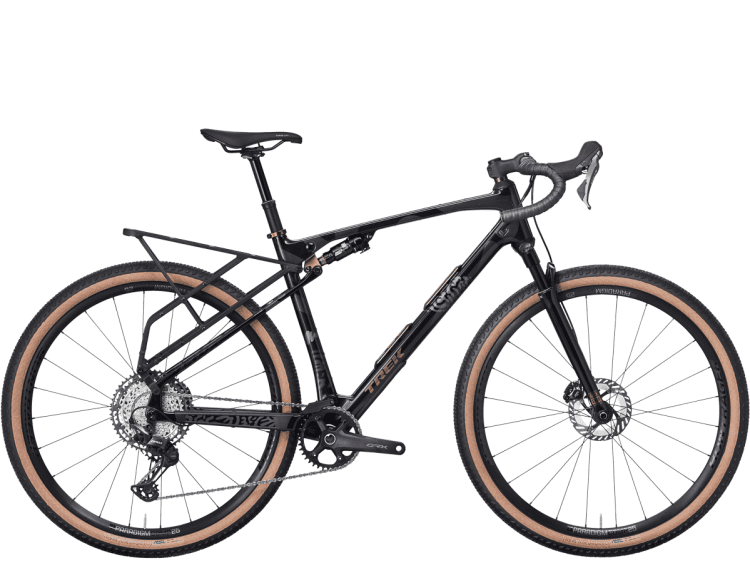

Trek has introduced the Checkout, a new full-suspension gravel bike that blurs the line between gravel and mountain biking. At first glance, with its 60mm of front travel, 55mm of rear suspension, dropper post, and clearance for 2.2-inch tires, it could easily be mistaken for a mountain bike—but Trek firmly positions it within the gravel category.

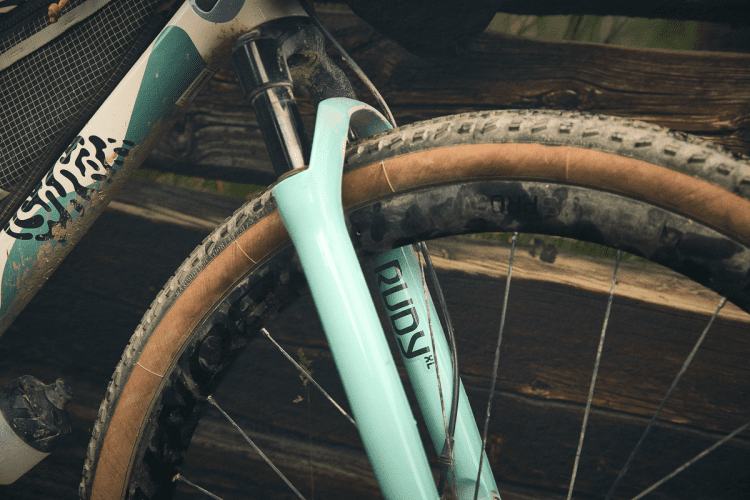

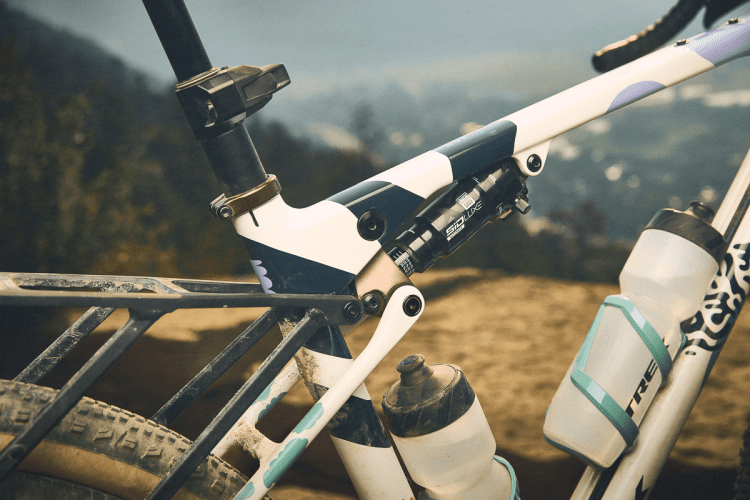

The bike builds around the newly released RockShox Rudy XL fork, featuring a Solo Air spring tuned for short travel and a Charger Race Day 2 damper with open and lockout positions. It can accommodate tires up to 2.25 inches, though Trek officially recommends a maximum of 2.2 inches. At the rear, a RockShox SidLuxe Ultimate shock provides 55mm of travel.

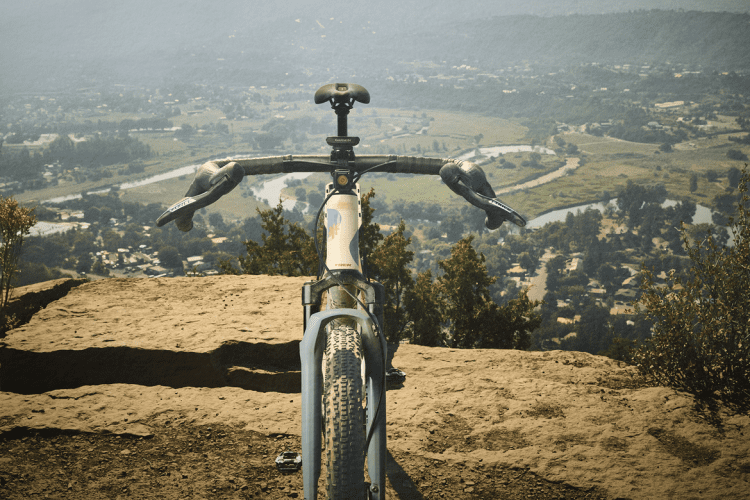

Compared to a traditional rigid gravel bike, the Checkout’s full-suspension system significantly reduces rider fatigue while improving comfort and control. The cockpit is aerodynamically optimized at the hoods, with flared drops that enhance handling on rough terrain. The handlebar is wider, matching a long-trail geometry, and features a 12cm difference between hoods and drops for a pronounced flare.
The Checkout’s geometry is longer and more relaxed than Trek’s Checkpoint model, offering increased stability on challenging surfaces. A taller stack height promotes a more comfortable, upright riding position, and a rearward weight bias helps alleviate lower back strain during long rides.

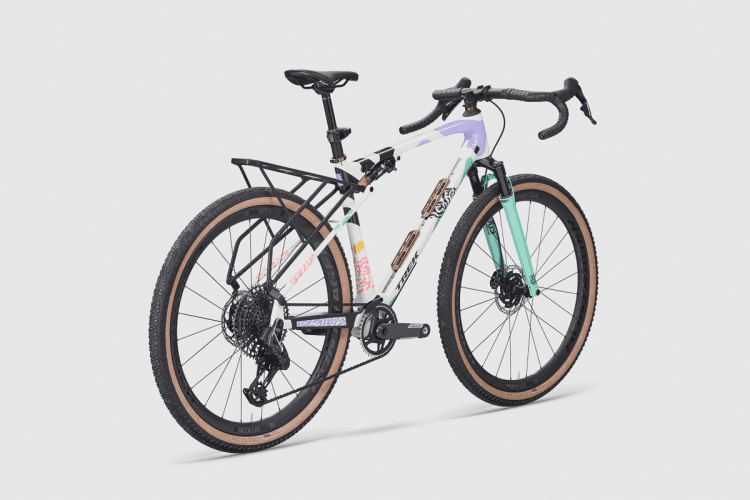

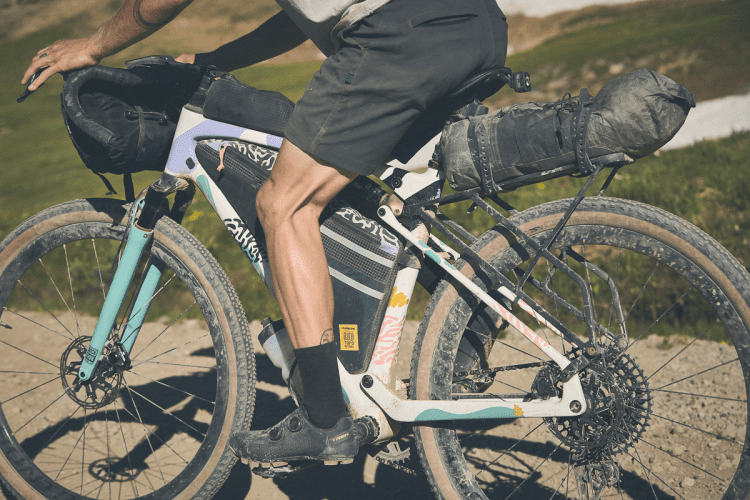

Frames in size ML and larger come equipped with 18 mounting points for cargo and accessories. A new integrated rear rack works in harmony with the suspension and dropper post, and the bike also features an adjustable multi-purpose mount on the top tube.
